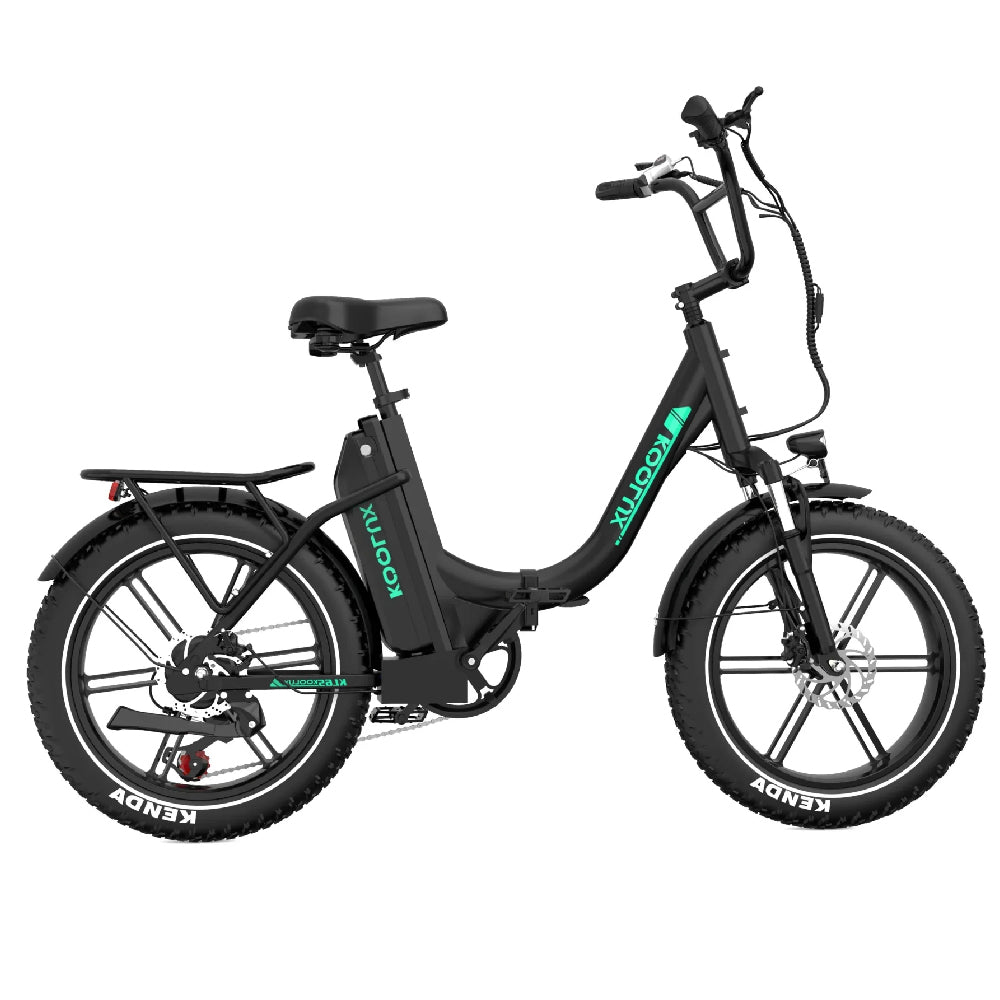

KOOLUX KL6S Electric Folding Bike

KOOLUX KL6S Electric Folding Bike

Regular price £745.00 GBP
Regular price Sale price £745.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
KOOLUX KL6S Electric Folding Bike

KOOLUX KL6S Electric Folding Bike

Specifications

Specification Details
Body Material Aluminum alloy
Color Black
Unfolding Size 1780mm*790mm*1118mm
Folding Size 960*470*890mm
Hub Form Integrated wheel
Wheel Size 20 inches
Package Size 1450mm*280mm*790mm
Gross/Net Weight 36kgs/30.5kgs (79.37lbs/67.24lbs)
Maximum Load 120kgs (264.55lbs)
Maximum Speed 25km/h (15mph)
Mileage 70km-120km (affected by load, temperature, and road conditions)
Maximum Climbing Angle 25 degrees
Proper Temperature -10~45°C
Waterproof Level IP54
Battery Type 18650 lithium-ion power battery
Battery Capacity 15.6Ah (748.8Wh)
Battery Rated Voltage 48V
Motor Rated Power 0.25kW
Motor Form Assist mode
Motor Type 20 inch/high-speed gear/Integrated wheel brushless motor
Motor Rated No-Load Speed 400±10r/min
Charger Output 54.6V 3.0A
Charger Input 100-240V 50/60Hz 3.0A
Undervoltage Protection Value 40.5V
Overcurrent Protection Value 21A±1A
Charging Time 7-8 hours

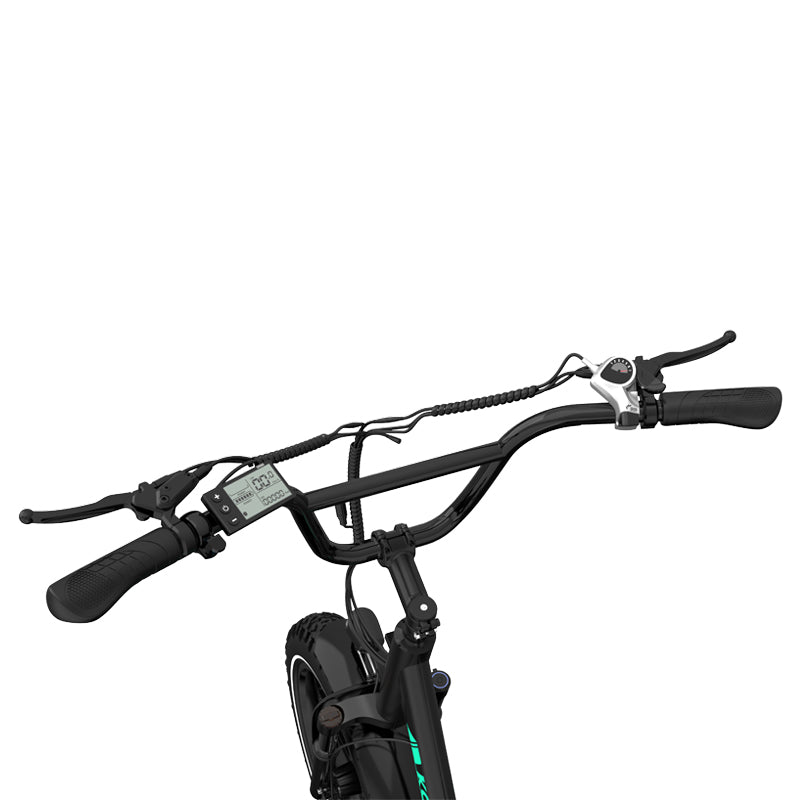

Instrument Display Multifunctional LCD screen

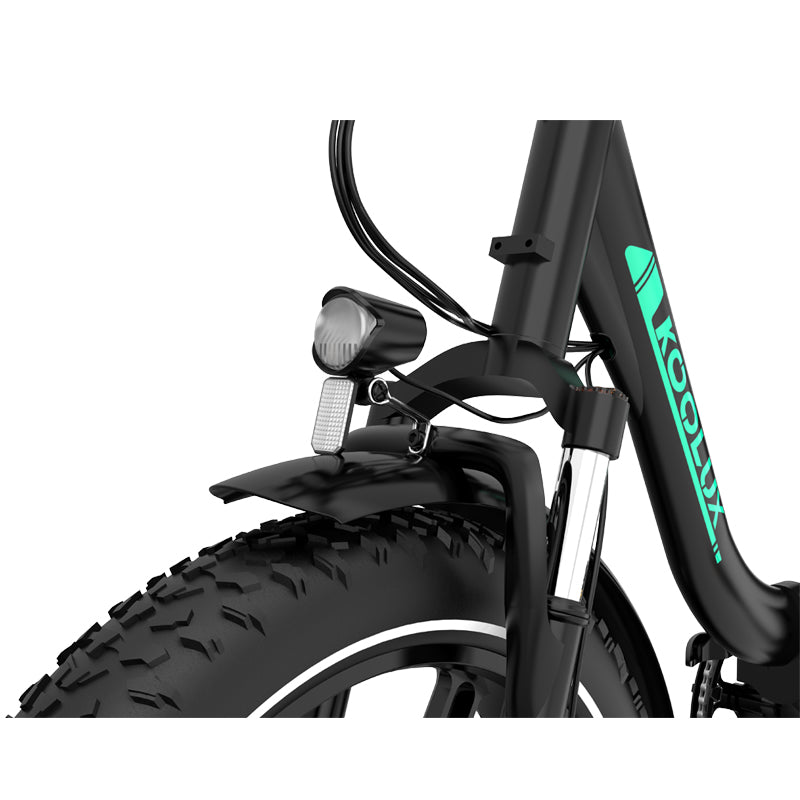

Front Lighting YES
Braking Method Front disc brake + Rear disc brake
Pneumatic Tires Tire: 20*4.0 Air Valve: AV
Front Fork Shock fork
Gear 7 Speeds transmission

Geometry

  • A Total length: 168 cm
  • B Handlebar height: 115-128 cm
  • C Wheelbase: 115 cm
  • D Standover height: 83-106 cm
  • E Top tube length: 60 cm
  • F Wheel diameter: 20”
  • G Handlebar width: 58 cm
  • Folded size: 96*38*75 cm
  • Driver size: 165-195 cm

Key Features

  • Efficient Powerful Electric Motor: 250W 48V motor with 25-degree slope capability and a detachable 15.6Ah battery for 70-120km range.
  • Intimate Design: Aluminum alloy frame, foldable for easy transport, comfortable breathable seat, and easy-to-read LCD display.
  • Upgraded Shifting: 3 riding modes: pedal assist, pure electric, and normal pedal mode with 7-speed Shimano transmission.
  • Advanced Safety Features: Hydraulic braking system, bright LED lights, and a sturdy frame for rider safety.
  • Comfort Shock Absorption: Front suspension and large-capacity low-pressure tires for additional shock absorption on rough terrain.
  • Professional 20” Fat Ebike: Features Kenda 4.0-size tires for durability and stability in all terrains.

What's in the Package?

  • Electric Bike × 1
  • Charger × 1
  • Manual × 1
  • Throttle Included

Note

The bike is fully compliant with electric bicycle regulations for public streets. The optimal height for users is between 162cm and 190cm, with a seat height of 80-96 cm.
